Ntuzi zuru oke maka ndị na-ejide ngwa na-ekpo ọkụ ọkụ: Site na ụkpụrụ Thermodynamic ruo na mmezi nke ọma nke Sub-millimeter (Nduzi bara uru 2025)
Ikpughe ihe nzuzo nke 0.02mm Runout Precision: Iwu iri maka ịrụ ọrụ igwe na-ekpo ọkụ ọkụ na usoro maka ime ka ndụ ha dị okpukpu abụọ
Nkọwa edemede:
I. The Thermodynamic basic tiori na-etinye aka na igwe na-ebelata okpomọkụ: Ngwa nke ụkpụrụ nke mgbasawanye ọkụ na nkwekọrịta na njigide ngwá ọrụ.
1. Key Data na Sayensị ihe:
Alloy thermal coefficient nke njide:
Ngwá ọrụ na-ekpo ọkụ na-ekpo ọkụ ígwè: α ≈ 11 × 10⁻⁶ / ℃ (na-agbasa site na 0.33mm mgbe okpomọkụ na-ebili site na 300 ℃)
Ihe njide alloy siri ike: α ≈ 5 × 10⁻⁶ / ℃
Nhazi dabara adaba:
ΔD=D0 . α. ΔT
Ọmụmaatụ: The φ10mm ngwá ọrụ aka na-ekpo ọkụ na 300 ℃ → The oghere gbasaa site 0.033mm → Mgbe obi jụrụ.
Nweta nkwụsị kwesịrị ekwesị nke 0.01 - 0.03mm
2.Comparison nke Uru nke Teknụzụ igwe na-ebelata okpomọkụ:
| Usoro njigide | Dayameta Runout | Mbufe Torque | Ugboro ngwa |
| Jide Fit Fit | ≤3 | ≥100 | 50,000+ |
| Ihe njide akụrụngwa hydraulic | ≤5 | 400-600 | 35,000 |
| ER mmiri mkpokọta | ≤10 | 100-200 | 25,000 |
II. Usoro arụ ọrụ ọkọlọtọ maka igwe na-ebelata okpomọkụ

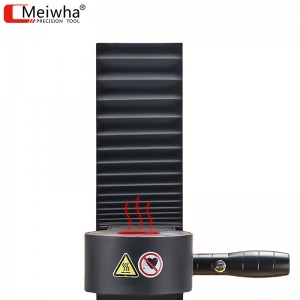

Nkeji 1: Igwe ọkụ na-ekpo ọkụ ọkụ
1.Parameter ntọala ọla edo usoro: Tset = α. D0ΔDtarget +25 ℃
Cheta na: 25 ℃ na-anọchi anya oke nchekwa (iji gbochie ntugharị ihe)
Dịka ọmụmaatụ: nnyonye anya ọkwa H6 dabara 0.015mm → Tọọ okpomọkụ ≈ 280℃
2.Operating nzọụkwụ nke shrink fit igwe

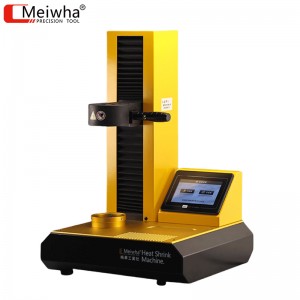

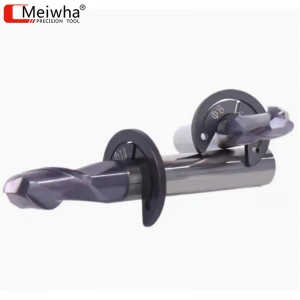

Wụnye ngwá ọrụ → Fanye njide n'ime igwe na-ekpo ọkụ ọkụ
↓
Tọọ okpomọkụ/oge
↓
Họrọ ụdị njide na igwe dabara adaba
↓
Ọ bụrụ na ejiri ígwè mee ihe njide, nhọrọ ahụ bụ: 280 - 320 ℃ / 8 - 12 sekọnd.
Ọ bụrụ na-eji ihe alloy ígwè aka: 380 - 420 ℃ / 5 - 8 sekọnd
↓
Mbelata Fit Machine buzzer alert → Wepu ihe njide
↓
Ikuku jụrụ oyi / Mmiri dị n'okpuru 80 ℃ (Nke a bụ igwe na-ekpo ọkụ ikuku jụrụ oyi:Ngwa igwe dabara adaba, Igwe mmiri na-ekpo ọkụ na-ekpo ọkụ na-emepụta ihe na ule na-aga n'ihu na ụlọ ọrụ mmepụta ihe.)
↓
Mgbe arụchara ọrụ ahụ na igwe dabara adaba, enwere ike iji akara ọkpụkpọ tụọ ịma jijiji.
Usoro 2: Ijikwa ngwa ngwa nke igwe dabara adaba
Oti mkpu na-ekpo oke ọkụ: ozugbo bepụ ọkụ eletrik → A na-emikpu ihe eji eme ihe n'ime ụlọ gas inert ka ọ dị jụụ.
Ngwakọta mmachi: Kpoo ya ọzọ ruo 150 ℃ wee jiri ihe mkpochapụ ngwa pụrụ iche mee ka ọ pụta ìhè.
III. Ntuziaka nlekọta miri emi maka igwe na-ebelata okpomọkụ: Site na nlekọta kwa ụbọchị nke igwe shrink Fit ruo amụma mmejọ.

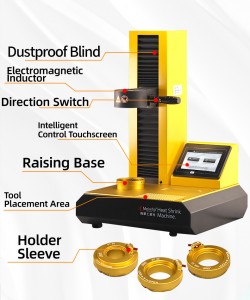

1.Maintenance Schedule maka isi ihe nke Shrink Fit Machine
| Ngwa igwe dabara adaba | Nlekọta kwa ụbọchị | Nchekwa oke | Mmegharị kwa afọ |
| Igwe ọkụ ọkụ | Wepu nha oxide | Nleta uru nguzogide(ngbanwe na-erughị ma ọ bụ hà nhata 5%) | Dochie uwe mkpuchi seramiiki |
| Ihe mmetụta okpomọkụ | Nkwenye ahụ gosipụtara mperi (± 3℃) | Calibration nke thermocouple | Kwalite modul nha okpomọkụ infrared |
| Sistemụ jụrụ oyi | Lelee na nrụgide eriri gas bụ ≥0.6MPa | Hichaa nku nke ikposa ọkụ | Dochie tube dị ugbu a nke igwe dabara adaba |
2.Strategy maka ịgbatị ndụ ndụ nke ndị na-eji ngwá ọrụ dabara adaba
Nleba anya na ọnụọgụ nke okirikiri okpomọkụ:
Mewha na-ebelata ndụ ihe njide dabara adaba: ≤ 300 okirikiri → Mgbe gafere oke a, ike na-agbada ruo HRC5. Ụdị ndebiri ndebiri ihe njide dabara adaba: ID njikwa | Ụbọchị | Okpomọkụ | Ngụkọta ọnụ
Ọgwụgwọ enyemaka mgbakasị ahụ jide dabara adaba:
Mgbe usoro okirikiri 50 ọ bụla → jide na 250 ℃ maka awa 1 maka mgbake okpomọkụ mgbe niile → kpochapụ microcracks
IV. Nkọwapụta nchekwa maka igwe na-ebelata okpomọkụ yana ikpe mperi na-egbu egbu
1.Top Four Do's and Don'ts for Working a Shrink Fit Machine:
Wepu aka ahụ site n'aka(chọrọ ihe nkwụnye ọkụ na-eguzogide okpomọkụ)
Mmiri jụrụ oyi quenching (naanị na-enye ohere bụ jụrụ)
Na-ekpo ọkụ na ihe karịrị 400 ℃ iji mee ka alloy sie ike (na-esi na nchịkọta ọka na mgbaji agụba)
2. Ntụle nke mperi arụ ọrụ nke igwe shrink Fit:
Ihe mgbawa mere n'ụlọ ọrụ ụgbọ ala:
Ihe kpatara ya: Mbelata mmiri mmiri si na ihe njide ngwa ngwa adalata → ikpo ọkụ na-akpata vaporization na mgbawa
Usoro: Tinye ebe a na-arụ ọrụ ihicha ụzọ maka ihe njide dabara adaba + ihe nchọta mmiri
V. Ihe ngosi ngwa na ntụnye nhọrọ maka igwe na-adaba adaba:
| Ụdị usoro | Ụdị njide akwadoro | Nhazi igwe dabara adaba |
| Aerospace titanium alloy | Ihe njide akụrụngwa carbide dị ogologo ma dị gịrịgịrị | Igwe ọkụ induction okpomọkụ dị elu (karịa 400 ℃) |
| Elu - ọsọ ziri ezi kanye nke ebu | Ihe njide conical dị mkpụmkpụ | Infrared kpo oku (320 ℃) |
| Bufee roughing | Ihe njide igwe siri ike (BT50) | Induction elektrọnik + Sistemụ jụrụ oyi |
Ọ bụrụ na ị nwere atụmatụ ịzụta igwe dabara adaba, ị nwere ike pịa "Ngwa igwe dabara adaba"ma ọ bụ"Jide Fit Fit" iji tinye njikọ wee lelee ozi zuru ezu karị. Ma ọ bụ ị nwekwara ike ịkpọtụrụ anyị ozugbo.
