Self Centering Vise: Mgbanwe nkenke nkenke sitere na ikuku ikuku gaa na nrụpụta ahụike
Ngwọta bara uru na 0.005mm kwughachi izi ezi, 300% nkwalite na nguzogide vibration, yana mbelata 50% na ụgwọ ọrụ.
Nkọwa edemede:

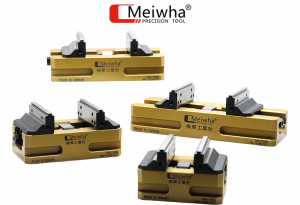

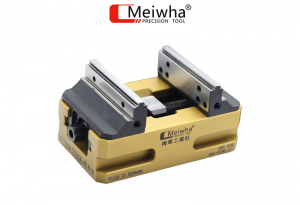

Meiwha Self Centering Vise
I. Self centering Vise: Uru mgbanwe mgbanwe nke na-akpaghasị mgbachi ọdịnala
Ikpe 1: Onye nrụpụta akụrụngwa akụrụngwa ama ama
Nsogbu ndị bụ isi zutere mgbe ị na-eji vise:
1.Large concentricity deviation: The omenala vise clamping usoro na-eme ka a concentricity njehie nke gia nke 0.03mm, nke karịrị ndidi nso (≤0.01mm), na scrap ọnụego dị elu dị ka 15%.
2. obere mmepụta arụmọrụ: Nke ọ bụla ibe chọrọ 8 nkeji maka clamping, na ugboro ugboro mgbanwe na-akpaghasị mmepụta ahịrị rhythm.
3.Surface àgwà a kwụsiri ike: Nhazi vibration na-eme ka elu roughness Ra na-agbanwe n'etiti 0.6 na 1.2 μm, na-eme ka 30% abawanye na polishing ụgwọ.
Ngwọta: nkwalite nke teknụzụ vise na-eche onwe ya
Ihe ndị bụ isi nke Vise Self Centering:
Izi ezi n'etiti: ± 0.005mm
Ndokwa nkwughachi ziri ezi: ± 0.002mm
Ike njide kacha elu: 8000N
Ụgbọ okporo ígwè siri ike (HRC ≥ 60) ikike mgbochi iyi
(Meiwha nwere ike izute isi ihe ndị aonwe-centing vise.)
Usoro mmejuputa a kapịrị ọnụ maka iji dochie vise na-adabere na ya:
1. Mmeghari ahịrị mmepụta: Dochie ajọ omume ọdịnala na ụlọ ọrụ igwe 5 wee jikọta usoro mgbanwe ngwa ngwa efu efu.
2. Self centering vise na shark fin-dị ka agba imewe: The pụrụ iche eze udi enhances esemokwu, mbenata ịma jijiji (mbilitude ịma jijiji na-ebelata 60%).
Ọganihu ndị a nwetara n'usoro ziri ezi, arụmọrụ na ọnụ ahịa mgbe emelitere vise nke na-ahụ maka onwe ya.
| Index | Tupu ịkwalite vise n'onwe ya | Mgbe emelitela onwe-centing vise | Pasent nkwalite |
| Njehie Coaxial | 0.03mm | 0.008mm | 73% ↓ |
| Oge njigide otu-ibe | 8 min | Nkeji 2 | 75% ↓ |
| Elu adịghị ike Ra | 0.6-1.2 μm | Nkwụsi ike ≤ 0.4 μm | agbanwe agbanwe |
| Mfu mkpofu kwa afọ | 1,800,000 | $450,000 | ¥1.35 nde echekwara |
| Ịcha ndụ | Ná nkezi, 300 ihe. | 420 ihe | 40% ↑ |
Nkwụghachi ụgwọ maka nwelite vise na-ahụ maka onwe: Ntinye ego akụrụngwa bụ ￥200,000, a na-enwetakwa ọnụ ahịa ya n'ime ọnwa isii.

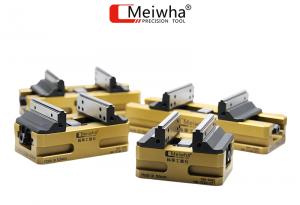

Meiwha Self Centering Vise: MW-SC130-007

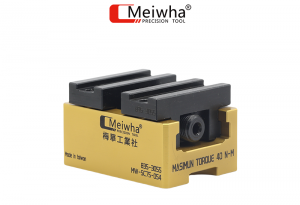

Meiwha Self Centering vise: MW-SC75-054
II. Uru ndị bụ isi nke vise Clamps nke na-ahụ maka onwe ya: Mmepe ugboro atọ na nkenke, arụmọrụ na mgbanwe.
Uru nke ilekwasị anya n'onwe vise 1: nkwa ziri ezi nke ọkwa Micrometer
Teknụzụ mmekọrịta skru nke bidirectional: na-ewepụ nkwụghachi n'otu akụkụ, nkwụghachi nkwụghachi nke ziri ezi ≤ 0.005mm (vidiyo nke ule egosi ọkpụkpọ)
Tulee data nke nguzogide ịma jijiji n'etiti vise na-ahụ maka onwe ya na vise ọdịnala
| Usoro njigide | Ngosipụta ịma jijiji (μm) | Ọdịiche dị n'elu Ra (μm) |
| Vise omenala | 35 | 1.6 |
| Osote na-adabere n'onwe ya | 8 | 0.4 |
Self centering vise uru 2: Ịrụ ọrụ ejiri okpukpu abụọ
Sistemụ mgbanwe ngwa ngwa na-adabere na ya:
Ndokwa ebe efu na-eme ka ngbanwe nke abụọ nke abụọ rụọ ọrụ
The modular jaws na-akwado n'out oge clamping nke otutu tent nke workpieces n'oge nhazi.
Oghere eji amụbawanye site na 40%: etiti dị ala, imewe dị elu (100 - 160mm), na-enyere aka ịhazi 5 workpieces n'otu oge.
Self centering vise grips uru 3: Isi nke mmepụta mgbanwe
Nkwekọrịta zuru ụwa ọnụ:
Mkpịsị aka siri ike: akụkụ igwe na-akụchi akụkụ / nkedo (dakọtara na elu siri ike)
Claws dị nro: mkpuchi silikone ahaziri iche maka ichekwa ihu nke etinyere ahụike

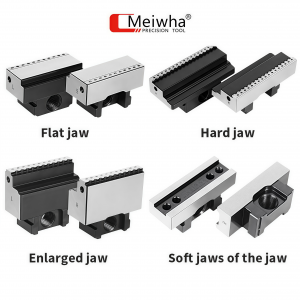

Vise jaws n'onwe ya

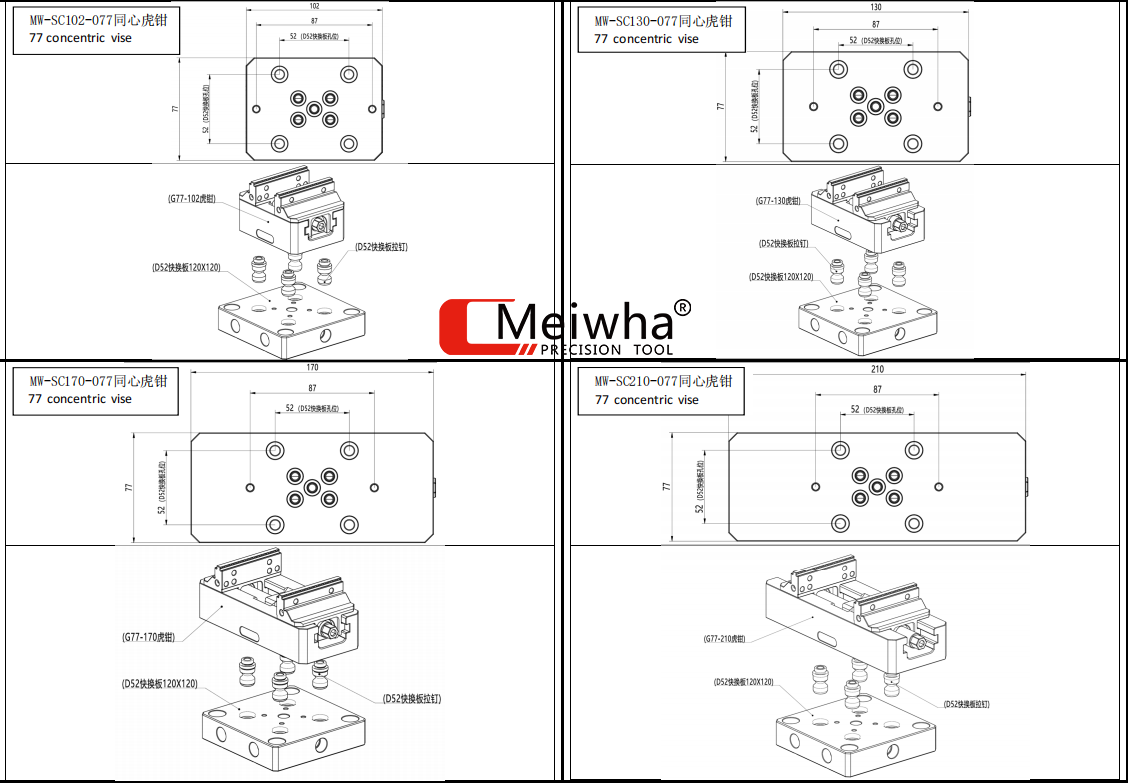

Eserese okirikiri nhọrọ ukwuu nke Vise Scheme
III. Ihe ngosi ngwa isii na nhọrọ Nlereanya nke Self centering vise
| Ụlọ ọrụ mmepụta ihe | Ihe eji arụ ọrụ nkịtị | Sikution | Mmetụta |
| Igwe ikuku | Titanium alloy nku ọgịrịga | Ugboro ugboro induction kpo oku vise + agba agba seramiiki | Nrụrụ <0.01mm, ndụ ngwaọrụ ejiri okpukpu abụọ |
| Ịkụnye ọgwụ | Prosthesis ikpere | Pneumatic self centering vise + Agụ dị nro nke ọkwa ahụike | Elu enweghị ọkọ, ọnụego mkpụrụ → 99.8% |
| Ụgbọ ala ume ọhụrụ | Ahụ igbe batrị | Vise hydraulic siri ike siri ike (ụdị mgbochi ịma jijiji) | A na-ebelata mkpọtụ nhazi site na 60%, na oge ọrụ na-ebelata site na 35%. |
| Ngwa eletrọnịkị nkenke | Ekwentị mkpanaaka etiti etiti | Vise dị ntakịrị nke na-ahụ maka onwe (φ80mm stroke) | E wedara mpaghara site na 70%, izi ezi ±0.003mm |

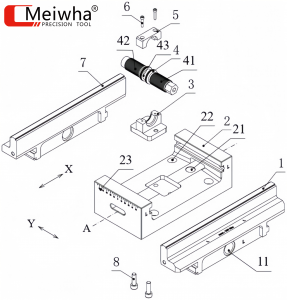

Eserese Structural Vise Centering Self
IV. Ntuziaka nlekọta maka Vise Centering Self : Nwere ike ịgbatị ndụ ọrụ Vise n'onwe ya
1. Ndepụta mmezi kwa ụbọchị maka ndị osote Grips:
| Self centering vise components | Ụkpụrụ ọrụ |
| Ụgbọ okporo ígwè ndu ịghasa | Mwepụ uzuzu egbe ikuku kwa ụbọchị + ntụtụ griiz kwa izu |
| Mpaghara kọntaktị elu na-amachi | Mmanya na-ehichapụ mmiri mmiri nke fọdụrụnụ |
| Usoro ịnya ụgbọ ala | Nyocha kwa ọnwa nke ọrụ mkpuchi ụzọ gas (nrụgide ≥ 0.6 MPa) |
2. Atọ eme na-adịghị maka ịnọgide na-enwe onwe centering vise
1.Jiri ahịhịa ígwè na-ehicha okporo ụzọ nduzi → na-eme ka ọkpụkpụ dị n'elu nkenke
2. Ịgwakọta lubricants dị iche iche viscosities → Ga-eduga na gelation na mgbochi
3. Ịgafe ikike njigide ejiri 50% → ga-ebute nrụrụ na-adịgide adịgide.
